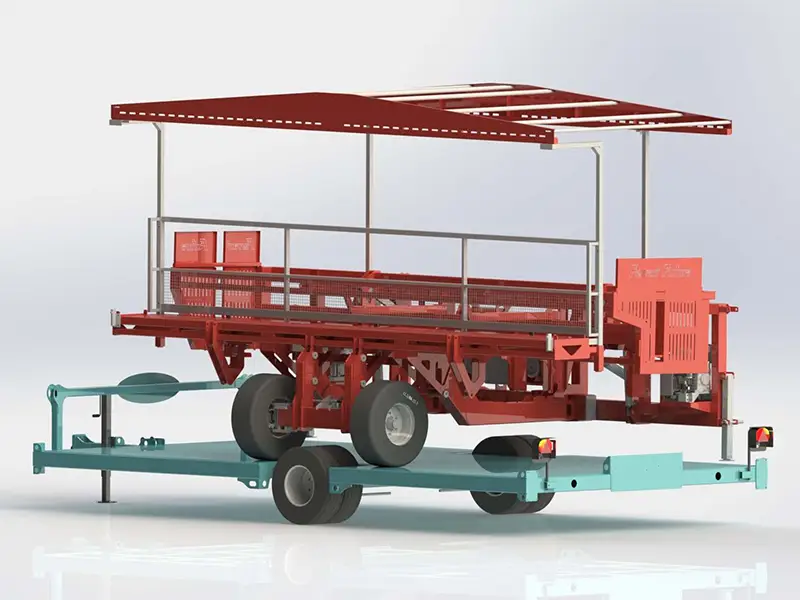

CSP and CSG: flatbed trailers for transporting transplanters and heavy agricultural machinery
The CS transport flatbed trailer is designed to facilitate the loading and transport of transplanters and agricultural equipment that are difficult to move on public roads.
The range was developed to meet demanding transport requirements, offering robust structures, low-profile configurations and securing systems designed to ensure safety during every stage of handling and transport.
Manufactured using high-quality materials and a sectional tubular frame, CS flatbed trailers combine structural strength with practical usability, adapting to different types of machinery and operating environments.
The equipment is completed by a braked axle and a pneumatic braking system, designed to ensure reliability even during road transport.
CSP MODEL
The CS P flatbed trailer is an agricultural trailer designed for transporting machinery such as transplanters and is built with a compact and durable structure.
The frame and cross-members are made from 150 × 150 × 5 mm sectional tubular steel, while the flatbed trailer features chequered steel plating to provide enhanced grip during loading operations.
The trailer is equipped with a removable and detachable mechanical axle, F2-type height-adjustable towing eye, manual support leg and two single wheels.
The configuration is completed with dedicated stops and securing hooks designed to lock and secure machinery during transport.
CSG MODEL
The CS G flatbed trailer is designed for transporting large agricultural machinery and features a robust frame made from 150 × 150 × 5 mm sectional tubular steel, with cross-members constructed from the same material.
Unlike the CS P model, it is equipped with a single axle positioned beneath the frame rather than a removable axle.
The structure is completed with four twin 205/75 R17.5 reconditioned wheels, providing greater stability during transport.
It includes an F2 height-adjustable towing eye, manual support leg, locking stops and securing hooks, while the loading platform is finished with chequered steel plating.
